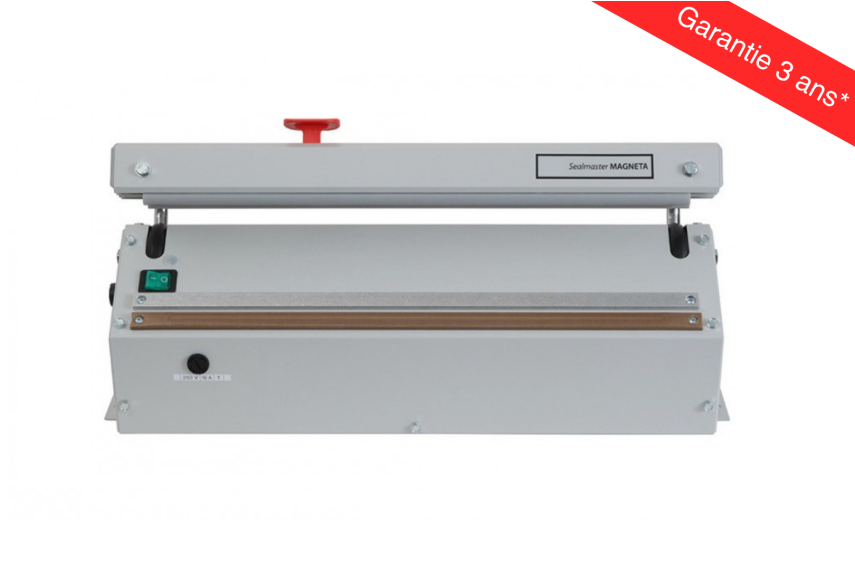

Sealmaster Magneta 421 MG
Sealer with electromagnet locking, can be operated by a pedal, featuring a cutting system and time control for sealing and cooling with a timer. Sealing length of 420 mm with a width of 3 mm.
En savoir plusDescription
Semi-automatic cycle machine. Once the sealing arm is closed, an integrated electromagnet holds it in place. It ensures consistent high-quality seals. This Magneta series is ideal for medium-duty applications and provides reliable seals time after time. Both seal and cooling times are adjustable and allows you to adapt the cycle to the thickness of the film being used.
The Magneta, which has been part of the Audion range for over 35 years, is known for its durability and user-friendliness, making it one of the most popular bag sealers worldwide. Many of our customers still use Magneta machines over 20 years old with no issues.
The machine is delivered without a pedal, and the sealing arm can be closed either manually or can be operated using a mechanical foot pedal. An an optional motorized version (MGM), which closes the seal bars automatically with a gentle press of the pedal. This ensures greater convenience for the operator by allowing hands-free operation.
The Magneta is compatible with polyethylene, polypropylene and other laminated films. It also features an integrated knife which enables it to be versatile for both pre-made bags and tubular films, enabling custom bag creation of any length.
When placed on a worktable, a simple press on the upper arm engages the cycle. The electromagnet keeps the arm closed during sealing and cooling times which eliminates the need for manual pressure. The arm automatically lifts after the cycle is complet, with a maximum sealing rate of 12 seals per minute.
A variety of accessories enables the Magneta series to offer great flexibility to meet different packaging needs. The seals produced are consistently of high quality, ensuring reliability for every use.
Given the proven durability and quality of this range. Magneta machines come with a 3-year warranty (excluding wear parts) and a 5-year warranty on transformers, underscoring their robustness and long-lasting performance.
- Reference
- 421 MG
- Sealing length
- 420 mm
- Sealing width
- 3 mm
- Maximum film thickness
- 2 x 150 microns
- Coating
- Epoxy
- Sealing type
- Impulse
- Integrated knife
- Yes
- Pedal operated
- Optional
- Validation
- No
- Protection IP
- IP 20
- Voltage
- 230 V mono
- Consumption
- 600 W
- Weight Gross
- 12 kg 900
- Packaging size
- 68 x 30 x 26 cm
-
Barre de soudure pour Magneta 421 et Sealboy Magneta 420
Barre de soudure pour Magneta 421 MG, MGM et MGS.
Compatible avec Sealboy Magneta 420.
Largeur de soudure : 3mm€79.79 -
-
-
-
Kit SAV Niveau 1 pour Magneta 421 MG & MGM
Ce kit comprend : 2 longueurs de fils de soudure, 2 téflons supérieurs, 1 téflon inférieur, 1 caoutchouc siliconé, 2 couteaux.€96.00 -
-
Kit SAV Niveau 2 pour Magneta 421 MG & MGM
Kit SAV comprenant : 2 barres de soudure, 2 caoutchoucs siliconé, 5 téflons inférieurs, 5 téflons supérieurs, 10 m de fil de résistance, 5 couteaux, un tube d'Audioncone.€304.00 -
-
-
