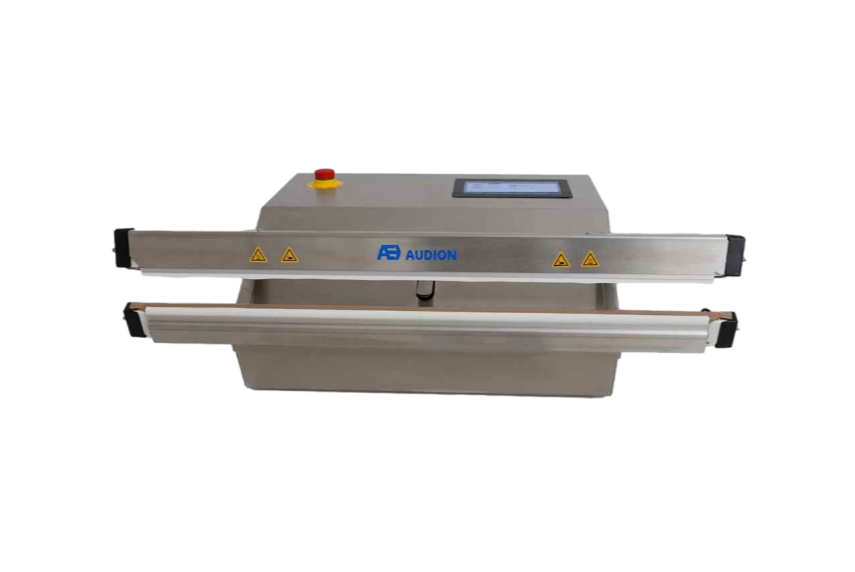

MAGVAC 520 TC
Medical impulse welder with temperature control function. Tabletop machine or optional stand-mounted, equipped with a system for vacuum sealing or gas injection. Sealing length of 520 mm.
En savoir plusDescription
The Magvac TC is a stainless steel impulse welder equipped with a nozzle vacuum system.
Particularly compact, this machine is operated by a foot pedal. It can be mounted on a height-adjustable, wheeled stand, allowing the welder to be oriented from a vertical to a horizontal position.
This model allows for temperature parameter validation, making it compliant with ISO 12100, ISO 4414, ISO 14118 standards, and the EN 60204-1 directive, suitable for use in the medical and pharmaceutical sectors. It is also widely used in the electronics, technology, industrial, and food sectors.
Main features:
- Biactive seal for better results on complex films
- Robust construction with stainless steel covers
- Pneumatic closing and locking of welding bars for very high welding pressure
- 45 mm jaw opening to facilitate bag placement
- Touchscreen control
- Ability to store 50 different work cycles
- Standard gas injection capability
- Seal temperature validation
- USB port and data logging
- Three access levels for settings: operators, supervisors, administrators
- A wide range of options has been developed to meet various applications in different sectors.
- Reference
- MV 520 TC
- Sealing length
- 520 mm
- Sealing width
- 2 x 3 mm (en option)
5 mm (en option)
8 mm - Maximum film thickness
- 2 x 400 microns
- Coating
- Stainless steel
- Model
- Sur pied (en option)
Table top - Pump capacity
- 11,3 m3/heure
21 m3/heure (en option) - Gas injection
- Oui
- Supply
- Pneumatic
Électric - Pedal operated
- Yes
- Validation
- Yes
- Protection IP
- IP 20
- Voltage
- 230 V mono
- Soudure biactive
- Oui
- Machine dimensions
- 615 x 512 x 257 en mm
- Net weight
- 43 KG
-
Kit SAV comprenant : 10 téflons supérieurs, 10 fils de soudure, 6 caoutchoucs siliconé, 6 téflons inférieurs, 2 caoutchoucs pour le vide et 1 tube Audioncone.€923.00
