Magneta Motor 521 MGM
Sealer with motorized locking, operated by an electric pedal, featuring a cutting system and time control for sealing and cooling with a timer. Sealing length of 520 mm with a width of 3 mm.
En savoir plusDescription
Automatic cycle machine. Once the sealing arm is closed, an electromagnet locks it in place, and the sealing cycle runs automatically.

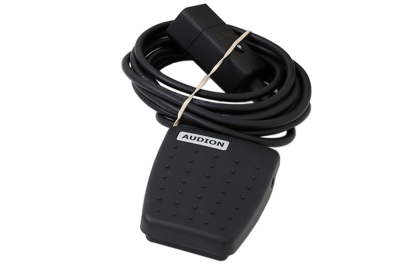

The sealer is equipped with an electric pedal. When the sealer is placed on a worktable, a simple press of this pedal is enough to start the sealing cycle. The arm with the help of the electromagnet which remains closed during the sealing and cooling time without the need to maintain pressure. It automatically lifts up.
The advantage of the electromagnet is clear: it allows faster and fatigue-free operations. Additionally, the cooling time is independent to the user as always consistent. The sealing rate cannot exceed a maximum of 12 seals per minute.
This robust industrial sealer is ideal for mid-volume applications and delivers a high-quality of 5mm seal suitable for sealing both pre-made bags and custom-created bags. The integrated knife system allows the user to efficiently cut and seal while the integrated seal wire tensioners ensure a well-tensioned sealing wire even after intensive use. This guarantees a consistent and reliable seal as independent to the operator's skill level.
This range of bag sealers celebrated 35 years on the market in 2020! It is undoubtedly one of the most well-known sealers in the world. The robustness and reliability of the Magneta range ensure consistent quality seals. The sealer is suitable for sealing various materials such as polyethylene, polypropylene and thin laminates.
A significant number of our clients use Magneta machines daily, some of which are over 20 years old and they continue to operate without any issues. The low-maintenance design and the wide range of available accessories offer maximum flexibility, ensuring the right machine for the right application, guaranting durable and reliable packaging solutions.
Most evidently and due to it's quality and durability of this range, these machines are generally guaranteed for 3 years (excluding wear parts) and 5 years for transformers. This is proof of the robustness of these sealers.
- Reference
- 521 MGM
- Sealing length
- 520 mm
- Sealing width
- 3 mm
- Maximum film thickness
- 2 x 150 microns
- Coating
- Epoxy
- Sealing type
- Impulse
- Integrated knife
- Yes
- Pedal operated
- Yes
- Validation
- No
- Protection IP
- IP 20
- Voltage
- 230 V mono
- Consumption
- 500 W
- Weight Gross
- 16 kg
- Packaging size
-
-
-
-
-
Kit SAV Niveau 1 pour Magneta 521 MG & MGM
Ce kit comprend : 2 longueurs de fils de soudure, 2 téflons supérieurs, 1 téflon inférieur, 1 caoutchouc siliconé, 2 couteaux.€129.00 -
Kit SAV Niveau 2 pour Magneta 521 MG & MGM
Ce kit comprend : 2 barres de soudure, 2 caoutchoucs siliconé, 5 téflons inférieurs, 5 teflons supérieurs, 10 m de fil de resistance, 5 couteaux, un tube d'Audioncone.€318.00 -
Barre de soudure pour Magneta 521 MG et MGM
Barre de soudure pour Magneta 521 MG et MGM.
Largeur du fil de résistance : 3mm.€88.54 -
-
-
