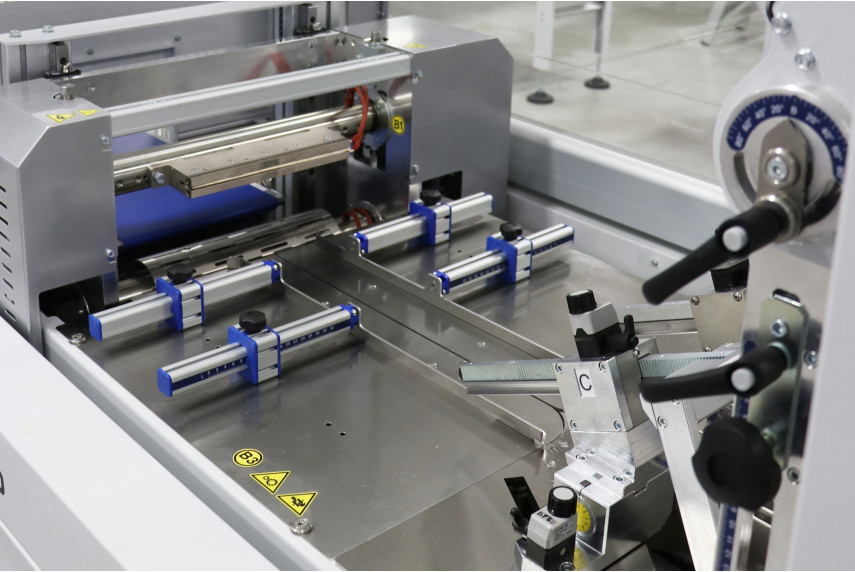

FPW 750S-LR SERVO

Capable of Packaging Various Types of Products, Even Large Ones

The FPW machine is designed to package different types of products, including large ones, using flexible or laminated materials to ensure optimal preservation. Thanks to its advanced sealing, folding systems, and an adjustable former, the FPW is the ideal solution for extending product shelf life (through gas injection or aroma nebulization) while adapting to varying product sizes and heights.

Advantages and Cutting-Edge Technology

With an accompanying bar sealing system, products and film move continuously while the jaws seal without interrupting transport. This ensures neat, precise, and airtight packaging, guaranteeing optimal product preservation. Its design incorporates advanced technical features for fast and efficient packaging, perfectly suited to demanding industrial environments.

Key Technical Features

• Flow Pack Design with Bottom Film Insertion: Engineered for easy film insertion with a robust and ergonomic structure.

• Intermittent Transverse Sealing Bar: A 350mm-wide sealing bar system ensures reliable and secure packaging.

• 2000mm Feeding Conveyor with Adjustable Guides: A long conveyor that enables continuous feeding and adapts to various product formats with easily adjustable guides.

• Product Loading Conveyor with Belt: Equipped with a sturdy belt for smooth and continuous product feeding, with an optional pallet system for enhanced production adaptability.

• Feeding System with Adjustable Guides and Removable Pallets: Adjustable guides and easily removable pallets simplify the product loading process.

• Longitudinal Sealing with Three Pairs of Drive Wheels: An innovative system featuring three pairs of wheels for precise sealing—

  • The first pair pulls the film,
  • The second performs the sealing,
  • The third folds the film for a perfect finish.

• Pneumatic Opening of Longitudinal Sealing Wheels: Facilitates easy sealing operations and enhances safety.

• Motorized Bottom Film Holder with Pneumatic Expandable Shaft: A motorized reel holder for smooth and quick film changes, improving productivity and reducing downtime.

• Dynamic Film Former: Adjustable with a digital position display, allowing instant modifications based on packaging needs.

• Automated Height Adjustment of Sealing Bar: The sealing bar height is motorized and can be saved in the program (center seal), enabling quick and precise format changes.

• Automated Height Adjustment of Longitudinal Sealer: The longitudinal sealer is also motorized and programmable, ensuring precise adaptation to product height for optimal packaging.

• Motorized Film Holder: Equipped with an asynchronous motor for smooth and stable film management, enhancing efficiency and minimizing material waste.

• Motorized Output Conveyor.

Integrated Control System and Advanced Functions

The FPW series features an advanced and intuitive electronic control system, allowing precise management of every packaging stage:

• Film Tension Control: An electronic system that maintains optimal film tension for wrinkle-free and distortion-free packaging.

• Three-Point Temperature Control: Independent and precise temperature control for each sealing section—longitudinal sealing, upper transverse sealing, and lower transverse sealing—ensuring airtight seals and consistent quality.

• Production Statistics and Monitoring: Real-time production indicators, piece counters, and machine efficiency tracking.

• Programming and Memory: Stores up to 50 different work cycles, simplifying production changes.

• Safety Features: Emergency stop button, end-of-film sensor, and "no product – no bag" function for secure operation.

A Compliant and Energy-Efficient Solution

Meeting CE regulations, these machines stand out for their low energy consumption, enhanced safety, and industrial efficiency.

Experience a new level of productivity and performance with high-quality packaging and user-friendly flexibility tailored to modern industrial needs.

Product dimensions and processing speed are provided as an indication and depend on product size, package format, and film type used.
