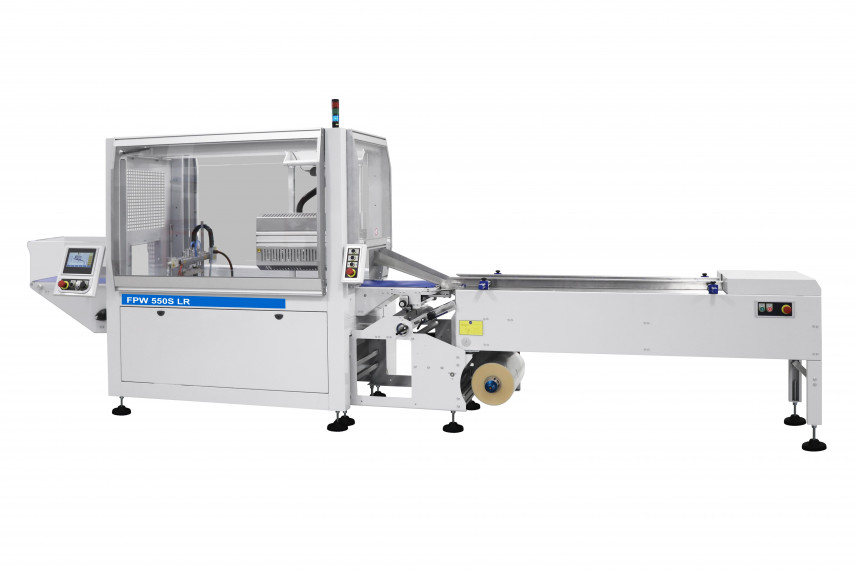

FPW 550S-LR

Horizontal Flow Pack Wrapper with Low Roll and Fixed Intermittent Sealing Bars (Without Box Motion)

Versatile and Efficient Packaging Solution

Capable of packaging various types of products, including bulky items, this machine uses flexible or laminated materials to ensure optimal preservation. With advanced sealing and folding systems and an adjustable film former, the FPW is the ideal solution for extending the shelf life of your products (via gas injection or aroma nebulization) while adapting to different product sizes and heights.

Key Advantages and Cutting-Edge Technologies

Thanks to its intermittent transverse sealing bar system, products pause momentarily while the jaws perform a vertical sealing motion, ensuring precise, hermetic packaging that guarantees optimal product preservation. The machine’s advanced technical features enable fast and efficient packaging, ideal for demanding industrial environments.

Main Technical Features

• Flow Pack Design with Low Roll: Designed for easy film insertion, featuring a robust and ergonomic structure.
• Intermittent Transverse Sealing Bar: 250 mm wide sealing system for reliable and secure packaging.
• 2000 mm Infeed Conveyor with Adjustable Guides: Ensures continuous feeding and adapts to different product formats with easily adjustable guides.
• Adjustable Guides and Removable Paddles: Simplifies product loading with customizable guides and detachable paddles.
• Three-Pair Longitudinal Sealing Wheels: An innovative system where the first pair pulls the film, the second performs the seal, and the third folds the film for a perfect finish.
• Pneumatic Opening of Longitudinal Sealing Wheels: Enables easy operation and enhanced safety.
• Motorized Low Roll Holder with Pneumatic Expandable Shaft: Ensures smooth and quick film changes, improving productivity and reducing downtime.
• Dynamic Film Former: Adjustable with digital position display for instant format adjustments.
• Automated Sealing Bar Height Adjustment: Motorized height control, programmable for quick and precise format changes (center seal).
• Automated Longitudinal Sealer Height Adjustment: Motorized and programmable, ensuring precise adaptation to product height for optimal packaging.
• Motorized Roll Holder: Equipped with an asynchronous motor for smooth and stable film handling, enhancing efficiency and reducing material waste.
• Motorized Outfeed Conveyor.

Integrated Control System and Advanced Functions

The FW series features a sophisticated and intuitive electronic control system, allowing seamless regulation of every packaging stage:

• Film Tension Control: Electronic system maintaining optimal film tension for wrinkle-free packaging.
• Three-Point Temperature Control: Independent and precise temperature management for longitudinal, upper transverse, and lower transverse sealing, ensuring airtight seals and consistent quality.
• Production Statistics and Monitoring: Real-time production indicators, piece counter, and machine performance tracking.
• Programming and Memory Storage: Stores up to 50 different work cycles, facilitating production changes.
• Safety Features: Emergency stop button, end-of-roll sensor, and "no product - no bag" function for secure operation.

Energy-Efficient and Compliance-Ready Solution

Compliant with CE regulations, these machines are designed for low energy consumption, enhanced safety, and industrial efficiency.

Achieve a new level of productivity and performance with high-quality packaging and flexible usability tailored to modern industrial needs.

Product dimensions and packaging speed are indicative and depend on product size, package format, and film type used.
