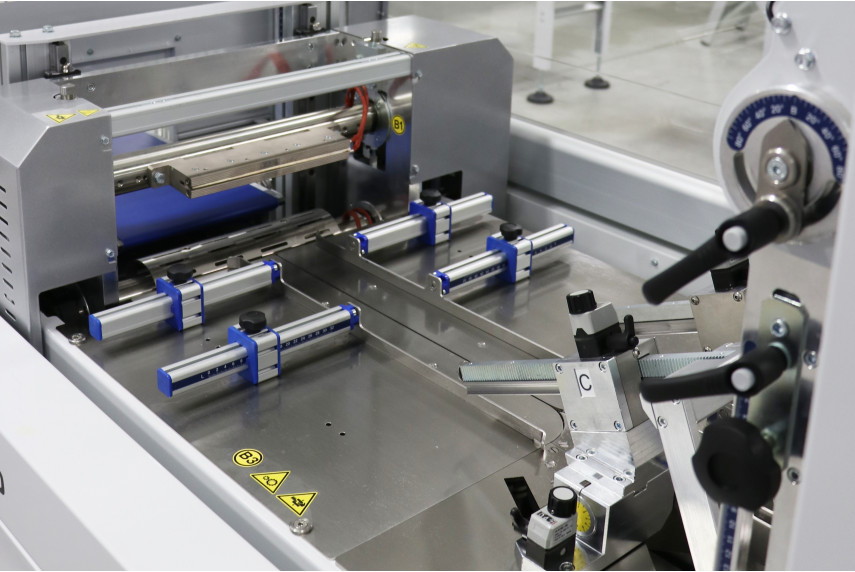

FPW 750S SERVO

Capable of packaging various types of products, even large ones, it uses flexible or laminated materials to ensure optimal preservation. Thanks to its advanced welding, folding systems, and an adjustable former, the FPW is the ideal solution for extending the shelf life of your products (through gas injection or aroma nebulization) while adapting to the varying sizes and heights of the packaged items.

Advantages and Cutting-Edge Technologies

With a continuous-motion sealing bar system, products and film move uninterruptedly while the jaws seal without pausing product and film transport. This ensures neat, precise, and airtight packaging, guaranteeing optimal product preservation. Its design incorporates advanced technical features, enabling fast and efficient packaging, perfectly suited for demanding industrial environments.

Key Technical Features

• Flow Pack Design with High-Mounted Roll: Designed for easy film insertion, with a robust and ergonomic structure.

• Transverse Sealing with Accompanying Bar: A 350 mm wide sealing bar system for reliable and secure packaging.

• 1500 mm Feeding Conveyor with Adjustable Guides: A long conveyor enabling continuous feeding, adaptable to different product formats with easily adjustable guides.

• Feeding System with Adjustable Guides and Removable Pallets: Adjustable guides and easily removable pallets simplify the product loading process.

• Longitudinal Sealing with Three Pairs of Drive Wheels: Innovative technology using three pairs of wheels for precise sealing. The first pair pulls the film, the second performs sealing, and the third folds the film for an optimal finish.

• Pneumatic Opening of Longitudinal Sealing Wheels: Ensures easy sealing operation management and enhanced safety.

• Motorized High-Mounted Roll Holder with Pneumatic Expanding Shaft: A motorized roll holder system for smooth and quick film changes, improving productivity and reducing downtime.

• Dynamic Film Former: Adjustable with digital position display for instant adaptation as needed.

• Memorizable Center Seal Bar Height Adjustment: The sealing bar height is motor-adjustable and can be saved, allowing quick retrieval of optimal configurations for each product.

• Motorized Discharge Conveyor.

Integrated Control System and Advanced Functions

The FW series features a sophisticated and intuitive electronic control system, facilitating the regulation of every step of the packaging process:

• Film Tension Control: An electronic system that maintains optimal tension for wrinkle-free and distortion-free packaging.

• Three-Point Temperature Control: Precise and independent temperature control for each sealing section—longitudinal sealing, upper transverse sealing, and lower transverse sealing—ensuring optimal tightness and consistent quality.

• Production Statistics and Monitoring: Instant production indicators, piece counter, and machine efficiency tracking for optimal performance monitoring.

• Programming and Memory Functions: Ability to store up to 50 different work cycles, making production changeovers easier.

• Safety Features: Emergency stop button, end-of-roll sensor, and "no product - no bag" function for secure operation.

A Regulation-Compliant and Energy-Efficient Solution

Compliant with CE regulations, these machines stand out for their low energy consumption, enhanced safety, and industrial efficiency.

Access a new level of productivity and performance, ensuring high-quality packaging and operational flexibility perfectly suited to modern industrial needs.

Product dimensions and production rate are indicative and depend on product dimensions, package format, and the type of film used.
