PE-D
PE-D wrapper machines are mainly intended for the packaging of product batches in LDPE heat-shrink film. These wrapper machines are available in 5 sealing bar lengths (680 - 840 - 1050 - 1240 - 1540 mm).
En savoir plusDescription
Product features for automated shrink-wrapping system :
- Automated product detection: Products arrive on a conveyor belt and are automatically detected by a sensor.
- Monoblock chassis with lockable wheels : Offers mobility and stability with reinforced mechanical properties for taller products.
- Custom design: Tailored construction for specific product needs.
- Programmable settings: Alpha-numeric identification with memory for different production runs.
- Color touch screen operator panel : For intuitive control and monitoring.
- Fully automatic system: Equipped with motorized conveyors for seamless operation.
- Adjustable conveyor speed : To match production requirements.
- Automatic product length detection : Ensures precision in wrapping processes.
- Motorized film feed : Driven by rollers that are triggered automatically by product insertion.
- Production counter with speed display : Allows for real-time tracking of production rate.
- Electronic weld temperature control : Embedded in the control panel for precise sealing.
- Teflon-coated thermal bar : Ensures clean and efficient sealing for various materials.
- Versatile sealing blade : Suitable for different packaging materials.
- Automatic product position detection : Sensors ensure accurate placement under the sealing bar.
- Quick adjustments : Easily configurable to accommodate different product sizes and production rates.
- ISO 9001 compliant manufacturing : Ensuring high-quality standards in production.
- Standardized mechanical, electrical, and pneumatic components : ISO-compliant for reliability (see component list).
- CE certification : Conforming to the latest CE directives for safety and compliance.
| Reference | PE 60-D | PE 80-D | PE 100-D | PE 120-D | PE 150-D |
|
Sealing length |
680 mm | 840 mm | 1050 mm | 1240 mm | 1540 mm |
|
Conveyor belt width |
600 mm | 800 mm | 1000 mm | 1200 mm | 1500 mm |
|
Maximum Film Width |
600 mm | 800 mm | 1000 mm | 1200 mm | 1500 mm |
| Voltage | 400 V 3 PH + T + N | 400 V 3 PH + T + N | 400 V 3 PH + T + N | 400 V 3 PH + T + N | 400 V 3 PH + T + N |
|
Compr. air supply |
6-7 bars | 6-7 bars | 6-7 bars | 6-7 bars | 6-7 bars |
|
Weight (Net / Gross) |
350 Kg / 450 Kg | 450 Kg / 570 Kg | 550 Kg / 690 Kg | 650 Kg / 810 Kg | 750 Kg / 930 Kg |
| Dimensions | 130x200x220 mm | 150x200x220 mm | 165x200x220 mm | 180x200x220 mm | 220x200x220 mm |

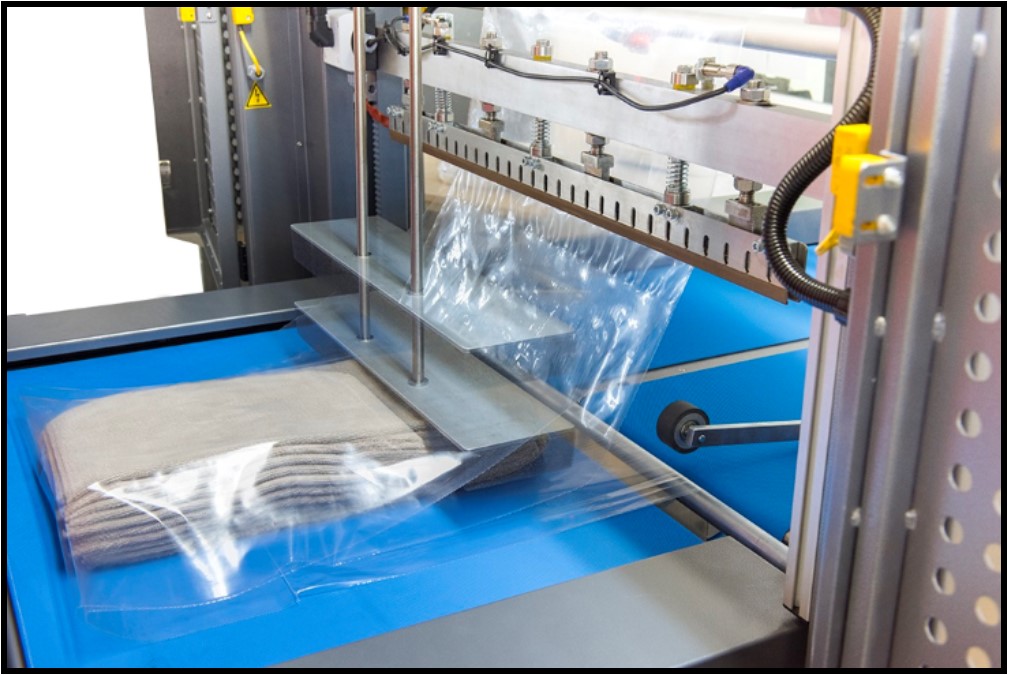

Presse paquet
