Dempack H20
Compact shrink chamber machine for small and medium productions (200 to 300 cycles per hour). Sealing frame size: 440 x 300 mm.
En savoir plusDescription
The DEMPACK H20 shrink chamber machine is ideal for shrink-wrapping small productions. This machine cleverly combines the L-sealing operation with the film shrinkage around the products. The operator places the product inside the film pocket on the loading tray, then pulls the film and positions the product in the chamber. The operator manually lowers the cover, which is held closed by electromagnets. The film shrinkage occurs simultaneously with the sealing operation. Shrinkage is achieved immediately through hot air circulation around the product. At the end of the process, the chamber automatically opens, allowing the operator to retrieve the wrapped product. This machine is designed for packaging a wide variety of products, in both the food and industrial sectors. It is compatible with most shrink films available on the market.
- Coating
- Epoxy
- Protection IP
- IP 20
- Voltage
- 230 V mono
- Consumption
- 1650 W
- Weight Gross
- 98 kg
- Packaging size
- 114 x 76 x 68 cm
- L – Sealer Size
- 440 x 300 mm
- Maximum Product Length*
- 410 mm
- Maximum Product Width*
- 250 mm
- Maximum Product Height*
- 210 mm
- Film Type
- Polyolefin
- Maximum Film Width
- 450 mm
- Maximum Roll Diameter
- 250 mm
-

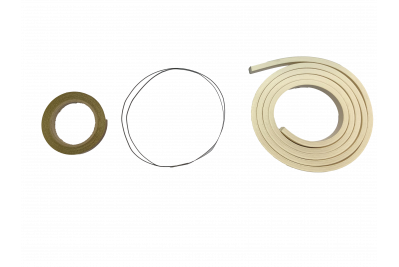

Kit SAV Niveau 1 pour Dempack H20
Kit SAV Comprenant : 1 lame de soudure, 5m de téflon, profil siliconé blanc€100.36
