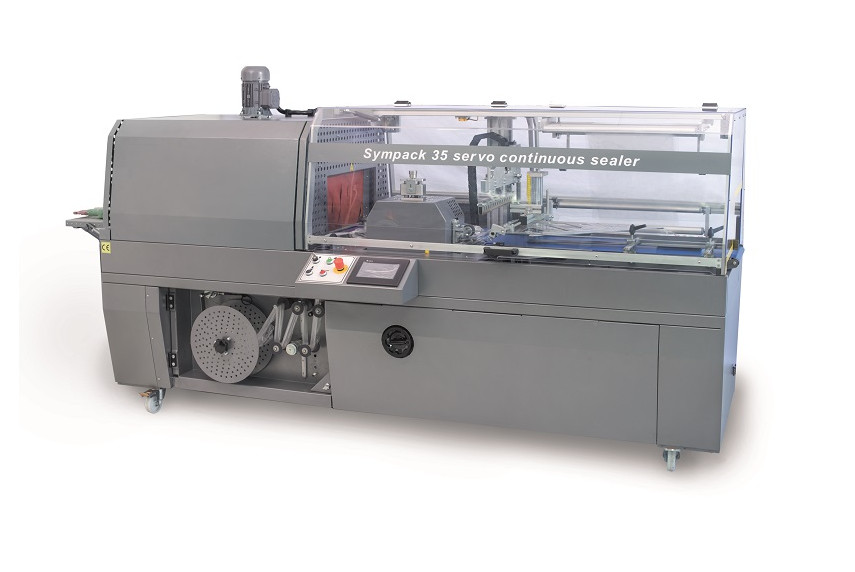

The SYMPACK continuous film wrapping machine is an automatic horizontal film wrapping machine with continuous longitudinal sealing and product transfer management via 2 belts. This machine integrates a shrink tunnel.

En savoir plus

Description

Designed for high-speed production, it operates with center-folded film, and its cycle is fully automatic. Products to be packaged are placed manually or automatically on a feed belt, and a horizontal sensor automatically detects the length of the products. This allows seamless processing of products with different lengths without adjustments. An adjustable former positions the film according to the product's size. The film is sealed around the product on three sides using a continuous sealing and cutting system with a heated blade and a fixed cross-cut sealing jaw.

- Compact and aesthetic design

- Seal centering system

- Sealing blade suitable for various packaging materials

- Adjustable pressure for cutting and sealing

- Electronically controlled sealing temperature integrated into the control panel

- Fast and flawless sealing with a Servo vertical seal

- Automatic length detection

- Product position detection under the sealing bar via sensor

- Automatic film feed with tension control

- Automatic waste film winder with tension adjustment

- Film waste winder designed for quick and easy unloading

- Adjustable and disengageable film perforation system

- Automatic cooling function starting from 70°C

- Additional temperature control system to prevent overheating

- Tunnel ventilation temperature and speed adjustable from the control system

- PID heat regulation

- Air circulation control in the tunnel via handle and deflector

- Production counter with real-time rate display

- Color touchscreen control panel

- Memorizable programs with alphanumeric identification

- ISO 9001 manufacturing

- ISO-standard mechanical, electrical, and pneumatic components (see list)

- CE certifications, compliant with the latest CE directives

325 cm
150 cm
220 cm
1010 kg
Data sheet
Sealing length
420 mm
Conveyor width
350 mm
Voltage
400 V 3PH + T + N
Weight Gross
810 kg
Maximum Product Length*
600 mm
Maximum Product Width*
300 mm
Maximum Product Height*
200 mm
Maximum Film Width
550 mm
Maximum Roll Diameter
270 mm
Conveyor speed
30 metres/minute
Machine dimensions
150 x 280 x 155 mm
