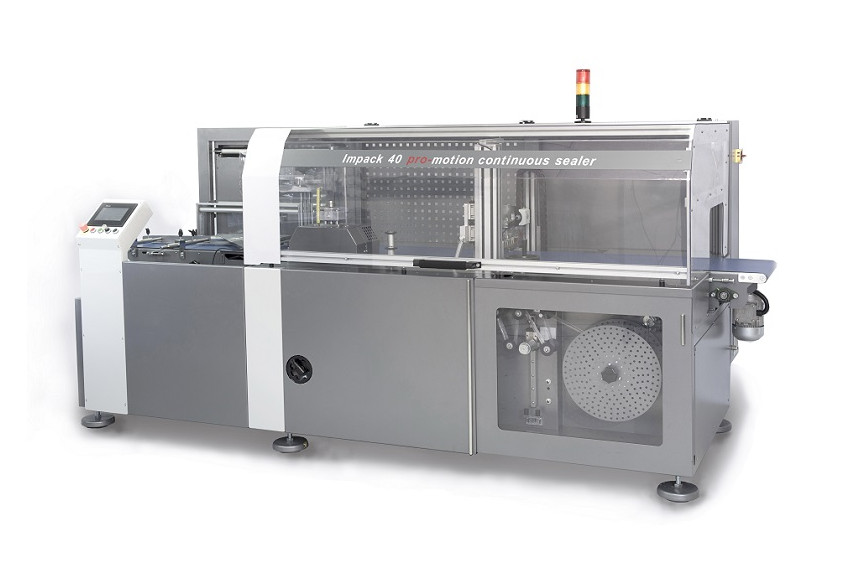

IMPACK PRO-MOTION

325 cm
150 cm
150 cm
1010 kg
Garanties sécurité Politique de livraison Politique retours

The IMPACK PRO-MOTION continuous wrapper is an automatic horizontal film wrapping machine with continuous longitudinal sealing and product transfer management via 3 belts.

En savoir plus

Description

The transverse sealing bar with accompanying movement allows for high production rates. This machine can be paired with a shrink tunnel. It operates with center-folded film, and its cycle is fully automatic. The products to be packaged are placed manually or automatically on a feed belt, and a horizontal sensor automatically detects the length of the products. This allows for processing products of different lengths without adjustments. An adjustable former allows the film to be positioned according to the product's size. The film is sealed around the product on three sides using a continuous seal-cut system with a heated knife and a fixed transverse seal-cut jaw.

- Centering of longitudinal and transverse seals

- Sealing temperature controlled by PID

- Product position detection under the sealing bar by sensor

- Compact and aesthetically pleasing design

- Automatic detection of product length

- Color touchscreen operator panel

- Speed synchronization controlled by encoder

- Simple format change for different product sizes

- Optional belt or lug-feed conveyor

- Automatic film feed with tension control

- Automatic waste film winder with tension adjustment and detection of film break or end

- Up to 15% savings on film consumption

- Film tension adjustment to avoid stress on the seal

- Adjustable height transverse sealer (optional motorized)

- Multiple languages available on the control system

- Memory for work programs based on product dimensions

- Production counter with real-time rate display

- ISO 9001 manufacturing

- ISO-standard mechanical, electrical, and pneumatic components (see list)

- CE certifications, compliant with the latest CE directives

Reference IMPACK PROMOTION 20 IMPACK PROMOTION 40 IMPACK PROMOTION 60 IMPACK PROMOTION 80
Sealing lenght 400 mm 540 mm 730 mm 930 mm
Conveyor width 200 mm 400 mm 600 mm 800 mm
Film type POF PE POF PE POF PE POF PE
Maximum film width 700 mm 700 mm 1000 mm 1000 mm
Power supply 400V 8 Amp 3PH + T + N 400V 9 Amp 3PH + T + N 400V 9 Amp 3PH + T + N 400V 10 Amp 3PH + T + N
Weigth (Net / Gross) 700 Kg / 790 Kg 980 Kg / 1010 Kg 1090 Kg / 1250 Kg 1140 Kg / 1320 Kg
Overall dimensions 1350x3250x1480 mm 1500x3250x1480 mm 1800x3750x1600 mm 2000x3750x1600 mm
