RLS e-PRO

223 cm
165 cm
163 cm
748 kg
Garanties sécurité Politique de livraison Politique retours

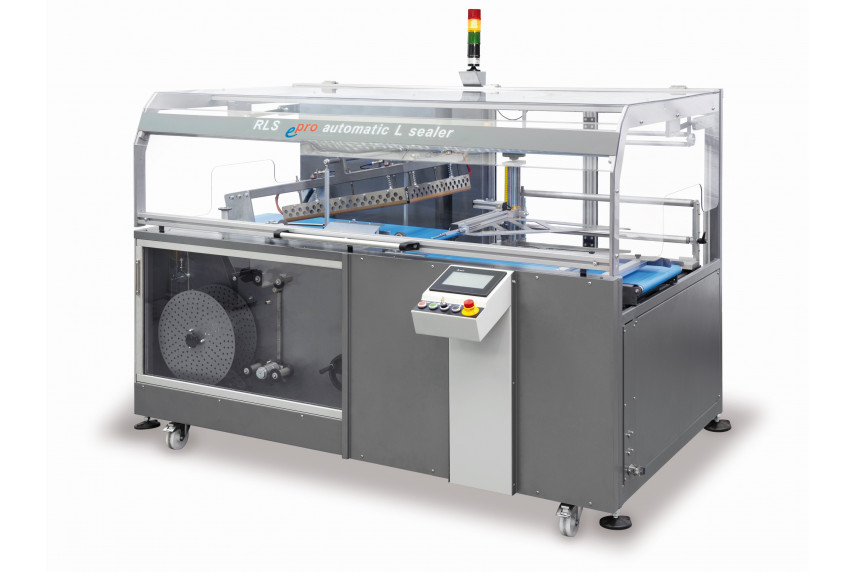

Automatic horizontal film wrapping machine with L-sealing bar (580 x 440 mm), with product transfer management via 2 belts. This machine operates with center-folded film, and its cycle is fully automatic.

En savoir plus

Description

The products that will be packaged are placed manually or automatically on a feed belt. A sensor automatically detects the product. It is possible to switch between products of different lengths without adjustment (within the limits of the sealing frame). An adjustable former allows the positioning of the film to be adjusted according to the product's size. The film is sealed around the product on three sides using an L-shaped sealing frame with a scissor movement. All the electronics are managed by an automated system with a touchscreen interface. This automatic machine can easily be integrated into a production line. Its design is optimized for easy adjustment and maintenance.

- Automatic detection of product length

- Color touchscreen control panel

- Automatic film feed with tension control

- Automatic waste film winder with tension adjustment and film break or end detection

- Waste winder protected by a sliding door and detector

- Control of product feed flow

- Production counter with production rate display

- PID heating regulation

- Teflon-coated L-shaped thermal bar

- Sealing pressure adjustment

- Centering system for the seal

- Electronically controlled sealing temperature integrated into the control panel

- Anti-crush safety system

- Audio and visual alerts for malfunctions

- Waste winder designed for easy and quick unloading

- Mechanical film perforator

- Intuitive programming of production parameters

- Adjustable programming language

- Fast parameter saving and recall

- Castors and leveling feet

- ISO 9001 manufacturing

223 cm
165 cm
163 cm
748 kg
Data sheet
Conveyor width
400 mm
Voltage
400 V 3PH + T + N
Weight Gross
748 kg
Maximum Product Length*
450 mm
Maximum Product Width*
350 mm
Maximum Product Height*
160 mm
Maximum Film Width
650 mm
Maximum Roll Diameter
300 mm
Conveyor speed
30 metres/minute
Machine dimensions
2080 x 1480 x h 1650

Convoyeur démontable inox
