MAGVAC
The Magvac range is an impulse sealer equipped with a nozzle vacuum system.
This machine is particularly compact and is available in five sealing lengths: 520, 720, 1020, 1320, and 1720 mm.
It comes in several versions:

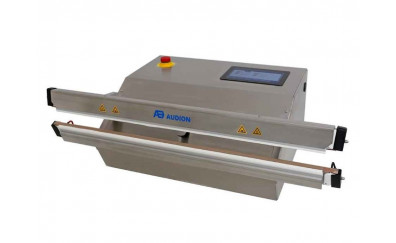

- The standard "TC" version with temperature control, designed for food and industrial applications.

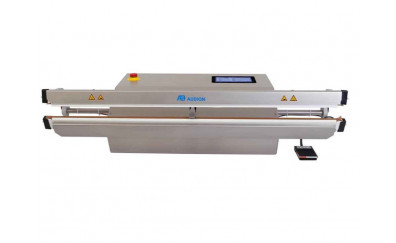

- The "MED PLUS" version, which includes validation of temperature, time, and pressure parameters, compliant with ISO 11607-2 and EN 868-5 standards, making it suitable for medical and pharmaceutical sectors.

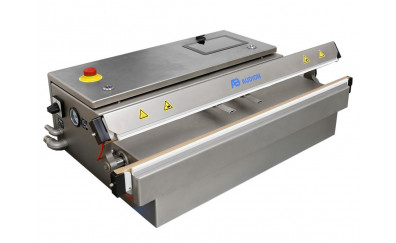

- The "MED PLUS IP65" version, designed for applications in wet environments.
| Magvac Version Standard | Magvac Version TC | Magvac Version MED PLUS | Magvac Version MED PLUS IP65 | Magvac Version MED PLUS IP65 XL | Magvac Version MED PLUS XL | |
| Sealing length | 520 mm 720 mm 1020 mm |
520 mm 720 mm 1020 mm |
520 mm 720 mm 1020 mm 1320 mm |
720 mm 1020 mm |
1720 mm | 2500 mm |
| Sealing width | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Sealing type | Impulse | Impulse | Impulse | Impulse | Impulse | Impulse |
| Biactive seal | Yes | Yes | Yes | Yes | Yes | Yes |
| Maximum film thickness | 2 x 400 microns | 2 x 400 microns | 2 x 400 microns | 2 x 400 microns | 2 x 400 microns | 2 x 400 microns |
| Covering | Inox | Inox | Inox | Inox | Inox | Inox |
| IP Protection | IP 20 | IP 20 | IP 20 | IP 65 | IP 65 | IP 20 |
| Validation | No | Temperature | Temperature Pressure Timer |
Temperature Pressure Timer |
Temperature Pressure Timer |
Temperature Pressure Timer |
| Optional calibration | No | Yes | Yes | Yes | Yes | Yes |
| QI/QO disponible | No | No | Yes | Yes | Yes | Yes |
