Semi-automatic cycle machine. Once the sealing arm is closed, an electromagnet locks it, and the sealing cycle proceeds automatically.
Available sealing widths: 320mm, 420mm, 520mm, 620mm, 720mm, 820mm, and 1020mm.
The sealer is delivered without a pedal; the arm can be closed manually or operated by the pedal of the stand, which is sold separately.
When placed on a worktable, a simple press on the upper arm engages the cycle. Thanks to the electromagnet, the arm stays closed during the sealing and cooling time without the need for constant pressure. It automatically lifts once the cycle is complete.
The benefit of the electromagnet is clear: it allows for faster, fatigue-free operation. Additionally, the independent cooling time ensures consistent results. The maximum sealing rate is up to 12 seals per minute.
| Version MG | Version MGS | |
| Sealing width | 3 mm | 3 mm |
| Maximum film thickness | 2 x 150 microns | 2 x 150 microns |
| Covering | Époxy | Stainless steel |
| Sealing type | Impulse | Impulse |
| Cutting system | Yes | Yes |
| Pedal operated | Optional | Optional |
| Protection IP | IP 20 | IP 20 |
| Voltage | 230 V mono | 230 V mono |
There are 6 products.

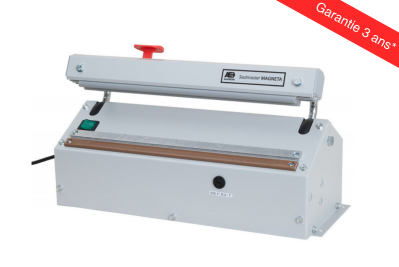

The 321 MG is an tabletop impulse sealer with a built-in cutter, which produces a weld length of 320mm and a seal width of 3mm. It is suitable for medium-duty applications.
This machine works with an integrated electromagnet and a timer wich control the sealing and cooling time.

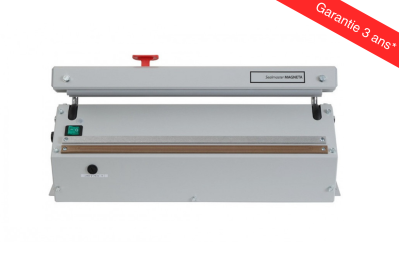

Sealer with electromagnet locking, can be operated by a pedal, featuring a cutting system and time control for sealing and cooling with a timer. Sealing length of 420 mm with a width of 3 mm.
Soudeuse INOX avec verrouillage par électro-aimant, peut être commandée par pédale, système de coupe et contrôle du temps de soudure et de refroidissement par minuterie. Longueur de soudure de 420 mm sur 3 mm de large.

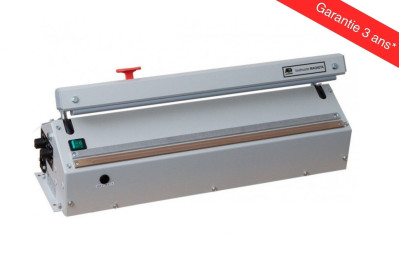

Sealer with electromagnet locking, can be operated by a pedal, featuring a cutting system and time control for sealing and cooling with a timer. Sealing length of 520 mm with a width of 3 mm.

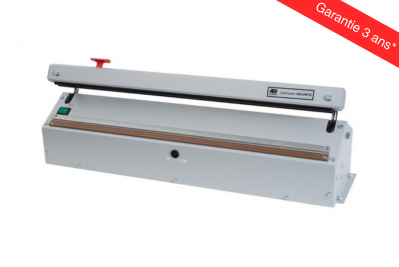

Sealer with electromagnet locking, can be operated by a pedal, featuring a cutting system and time control for sealing and cooling with a timer. Sealing length of 620 mm with a width of 3 mm.
Soudeuse INOX avec verrouillage par électro-aimant, peut être commandée par pédale, système de coupe et contrôle du temps de soudure et de refroidissement par minuterie. Longueur de soudure de 620 mm sur 3 mm de large.
